Cold Rolling Cassettes
Cold rolling cassettes cold-roll wire rod into plain-round or ribbed wire, and on high-volume lines they take the place of drawing dies. The finished wire typically goes into welded reinforcing mesh, stirrups, cages and lattice girders for construction, foundations and precast plants.
Category: Tungsten Carbide Cold Rolls

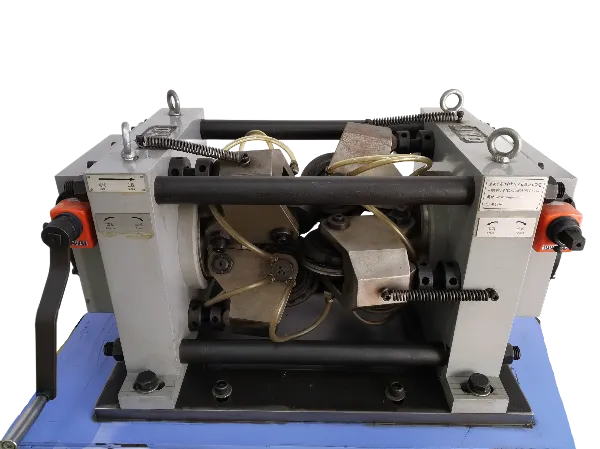

A cold rolling cassette is a compact roll stand that holds two sets of three carbide roll rings and cold-rolls wire rod into plain-round or ribbed wire. It sits between the pay-off and the take-up; lubrication and water cooling are built in. Finished wire: 3–16 mm (down to 2.5 mm on request).
Overview
Overview
Relink.Tools supplies complete cassettes, the ring sets that go in them, and the roll holders and spares, matched to the cassette model you run. If your line uses cassettes from another maker, we supply rings and holders to fit them.
One pass or two

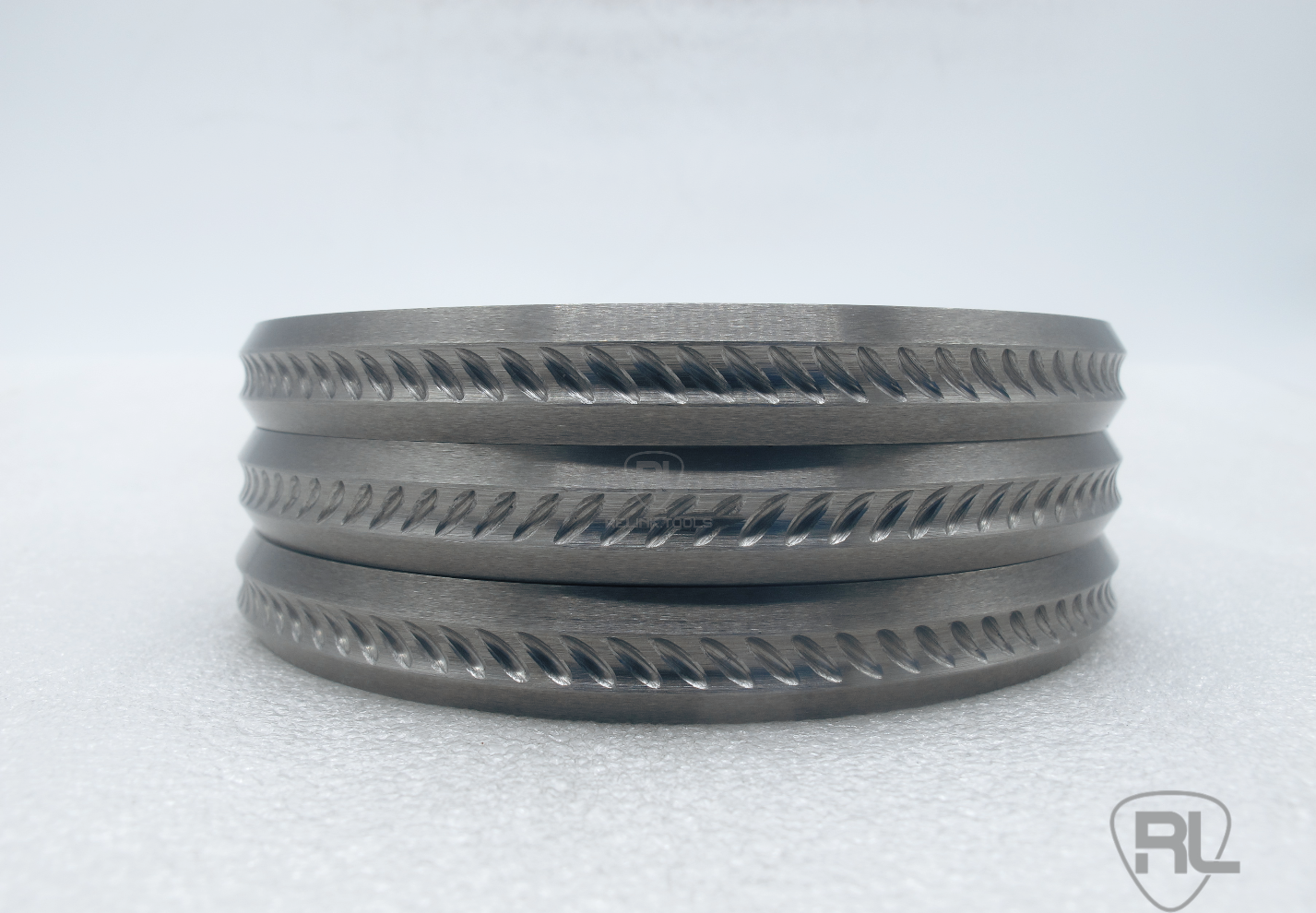

Most plants now run two cassettes. The first cassette reduces the rod with an oval (RO) and a round (RT) ring set. The second cassette finishes it: RO + CA for plain-round wire, FO + PR for ribbed wire. Each set has three rings. Two passes cost less per tonne, but each ring set carries more load and wears faster — which makes the choice of grade and ring type matter more. Send us your rod size and finished size, and we will match the full ring sequence.
GB 13788-2024. China's revised standard for cold-rolled ribbed bar (in force from September 2024) moves CRB550 from two-sided to three-sided ribs — the three-ring configuration.
Roller Holder
Roller Holder
 | Type | ØC (mm) | B (mm) | ØE (mm) | D (mm) |
| 82×15/25 | 82 | 15 | 25 | 65 | |
| 82×20/25 | 82 | 15 | 30 | 65 | |
| 90×15/30 | 90 | 15 | 30 | 65 | |
| 90×20/30 | 90 | 20 | 30 | 65 |
Specifications
Cassette, rings and holders
| Item | Supplied as |
|---|---|
| Cold rolling cassette | Two sets of three rings (3 pcs + 3 pcs), for plain-round or ribbed wire, depending on the ring set |
| Roll rings | Tungsten carbide, by ring type (RO, RT, CA, FO, PR); three-ring sets for three-sided ribs, two-ring sets for two-sided ribs |
| Roll holders | Detachable, with replaceable bearings; supplied with the rings as a set |
| Spare parts | Ring sets, roll holders and cooling pins, ordered together with the cassette or on their own |
| Marking | Rings can be engraved with your own marking |

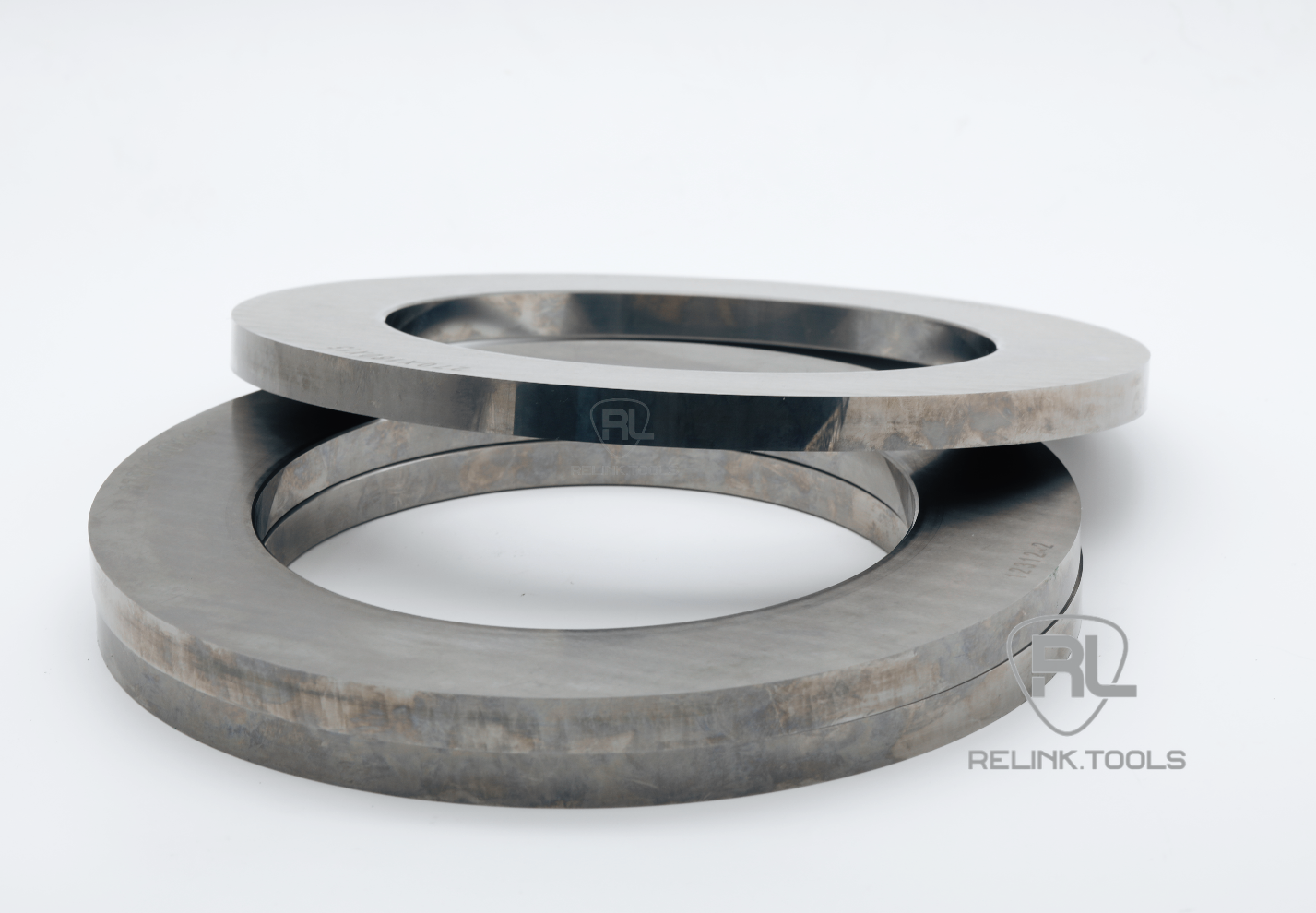

TC Roll Dimensions:
-
OD125 x ID82 x H15mm / OD125 x ID82 x H20mm
-
OD150 x ID90 x H15mm / OD150 x ID90 x H15mm
-
OD90 x ID65 x H15mm / OD110 x ID82 x H15mm
For finished sizes above 14 mm, 25 mm-thick rings are used.
The roll holder is the mechanical interface between the rings and the cassette; its fit decides how true the rings run and how long they last.
Compatible machines
Which cassettes and rolling mills?
Rings, roll holders and spares are available for cold rolling cassettes and mills from:
Promills · Demgroup · Eurolls · PromoStar · Eurodraw (GCR)
Other cassettes are matched by model or from a worn ring and holder.
To quote, send the cassette or mill model, the rod size going in, the finished size coming out, and plain-round or ribbed (with the rib grade if ribbed).
The brand names above identify compatibility only. Relink.Tools supplies tooling and spares, not the rolling mills.
FAQ
FAQ
Can you supply rings for a cassette made by another maker?
Yes. Rings, roll holders and spares are matched to the cassette model; for the makes listed above, the model is enough. For others, send a worn ring and holder or a drawing.
Should I run one pass or two?
Two passes are now the more common setup and cost less per tonne, but each ring set carries more load. That makes the grade and ring type more important. Send the rod size and finished size, and we propose the full ring sequence.
What do I need for ribbed wire to GB 13788-2024?
CRB550 and CRB650 have three-sided ribs and use three-ring sets; CRB600H has two-sided ribs and uses two-ring sets. Tell us the grade and the finished size, and we match the forming and ribbing rings.
Can the rings be engraved?
Yes — with your own marking. Tell us the text when you order.
What is the lead time?
Usually about 15 days, confirmed by item and quantity when we quote.
