Planetary Thread Rolling Dies for Nails
Planetary thread rolling dies for ring-shank and screw-shank nails, made to your machine and thread specification.
Category: Nail Making Tooling
A planetary thread rolling die set — a rotating roll and fixed segments — rolls ring or screw threads onto plain-shank nails.
Overview
Overview
Notice
To order planetary dies please offer below data:
Machine model, specification;
Ring shank or Screw shank? No. of pieces (e.g. 1 ring die + 4 segments, 1 ring die + 6 segments, etc.);
Thread information: length on work, major (nominal diameter), number of threads,angle or FORM wanted on the die(e.g.2000,67-4-120,etc.)
Material of your products or material of planetary dies(e.g. Cr12MoV, D2, DC53, tungsten carbide, etc.);
Potential addition requirements.
Ring shank grips best in softwood; screw (spiral) shank in hardwood — tell us which market the nails are for.
Key Features
Quality & Precision
High-performance, long-life planetary dies for Nail-making ensure reliable, stable nail threading. Get high-precision threads and minimize final part quality issues.
Long Life
Easily change or flip segments with minimal downtime and resetting. Interchangeable segments allow customers to roll larger volumes of nails.
Made to order
Tell us the machine, shank type and thread data above.
Product Series

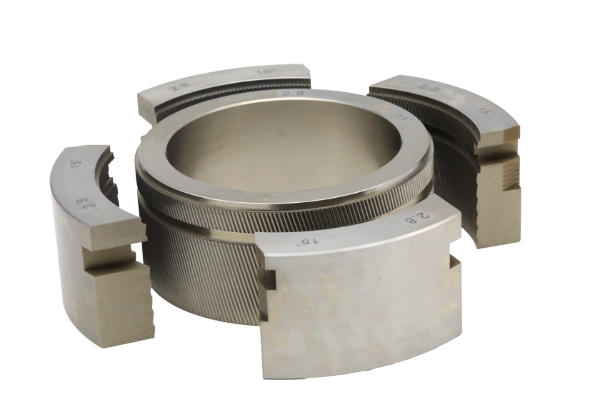

Planetary Rolling Dies for Screw Nails
Relink offers planetary dies for thread rolling machines that meet and exceed customer demands. Designed for producing standard nails such as spiral shanks and ring shanks,mainly for for the construction and shipping pallet industry.
With wire diameter range of 1.2mm to 5.0mm and nail length between 30mm to 100mm.

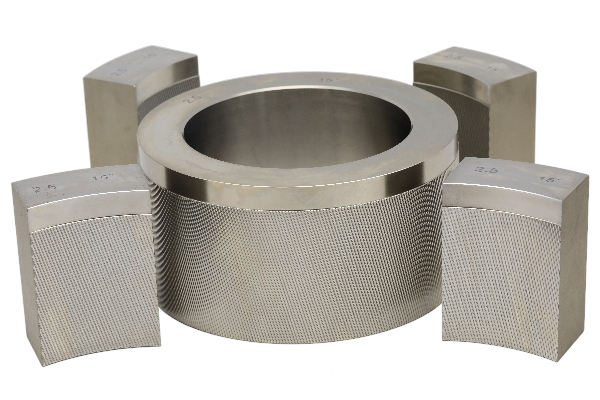

Planetary Dies for Ring Shank Nails
Planetary thread rolling dies offer remarkable adaptability for various nail manufacturing needs.
Suitable for high-speed planetary threading machines.
Available in tool steel (Cr12MoV, D2, DC53) or tungsten carbide.
Related products
Request a Quote
Get In Touch QuicklySend us your machine model or drawing, the wire or material, and the quantity. We will prepare a quotation.
