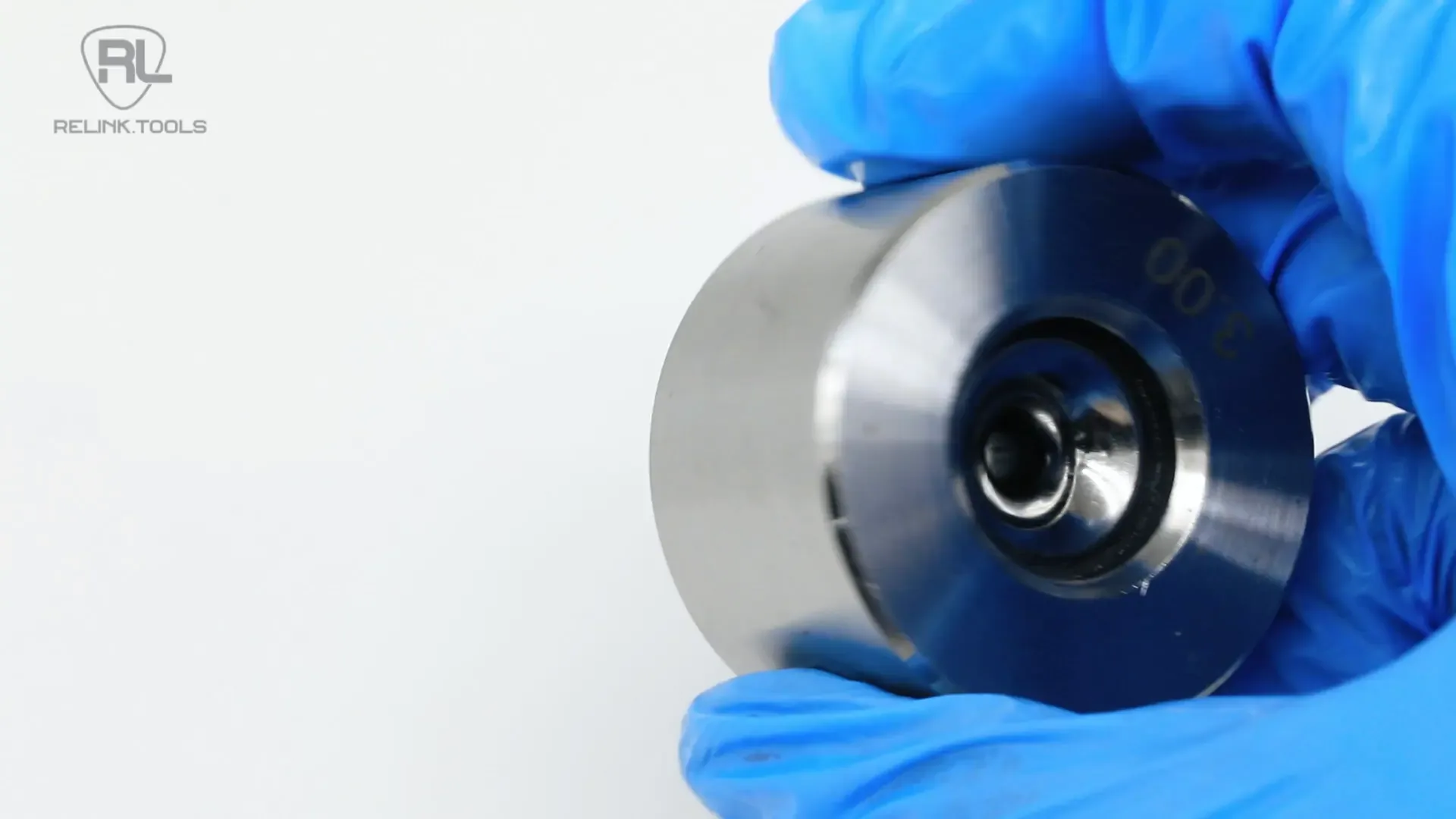

Nano Dies: A Step Change in Wire & Cable Manufacturing Efficiency

In the competitive landscape of wire and cable production, the choice of tooling determines not just the quality of the final product, but the long-term profitability of the plant. While Tungsten Carbide (TC) dies have been the industry workhorse for decades, a new hero has emerged: the Nano Drawing Die.

Made with Chemical Vapor Deposition (CVD) diamond coating, Relink™ Nano Dies offer a hybrid solution that combines the toughness of carbide with the extreme hardness of diamond.

Why Nano Dies are Changing the Game

Traditional dies often face a trade-off: Tungsten Carbide is tough but wears out quickly, while PCD Dies are incredibly durable but become prohibitively expensive for larger diameters. Nano Dies bridge this gap perfectly.

1. Much Longer Service Life

One of the most significant advantages of Nano Dies is their longevity. Compared to standard TC dies, nano-crystalline diamond dies typically last 10× or more, depending on the application. This drastic reduction in wear means fewer die changes, less machine downtime, and a much lower Total Cost of Ownership (TCO).

2. Bore Stability and Material Savings

In large-scale cable production, even a few microns of wear can lead to “oversizing,” where you consume more raw material (copper or aluminum) than necessary to ensure the wire meets minimum diameter specs. Because nano dies wear very slowly, the bore stays close to size for longer, which reduces the conductor overweight that creeping bores cause.

3. Mirror-Grade Surface Finish

The nanocrystalline diamond layer provides a very hard, ultra-low-friction working surface. This results in a mirror-like finish on the wire, reducing heat buildup and minimizing wire breakage—crucial for high-speed Wire & Cable Manufacturing.

Technical Comparison: Nano vs. TC vs. PCD

Feature	Nano Drawing Die	Tungsten Carbide (TC)	PCD Die
Service Life	10× or more	Baseline	Tens of times longer (small sizes)
Diameter Range	Under 1 mm to large sizes	Wide range	Up to about 30 mm
Surface Finish	Mirror Grade	Good	Superior
Value for Money	Highest (Especially for Large Ø)	Low (Frequent downtime)	High (But expensive)

Key Applications in the Industry

Whether you draw wire for fasteners or for specialized cable production, Nano Dies provide strategic value:

• Cable Compacting & Stranding: Ideal for maintaining tight tolerances without surface scratches.

• High-Carbon Steel: Solves the rapid wear issues seen in TC dies when drawing high-strength steel.

• Large Diameter Rods: In large sizes where PCD becomes too costly, nano dies are a cost-effective long-life option. Below about 2 mm, PCD is usually the more economical choice.

Conclusion: Is it Time to Upgrade?

The shift from “emotional buying” to “data-driven procurement” in the tungsten market highlights a clear trend: efficiency is king. While the initial investment in Nano Dies is higher than TC dies, the reduction in downtime and the material savings make them the most logical choice for modern factories.

Ready to optimize your production line? Explore our full range of High-Quality Wire Drawing Dies or contact our technical team at [email protected] for a custom quotation.
